The LV7600 is a ‘True-Hybrid’ rasterizer compatible with 4K/HD/SD-SDI signals and UHDTV/HD/SD IP signals. The LV7600 offers the same functions as the LV5600 in a 1RU, full-rack enclosure and supports a variety of SDI signals up to 12G-SDI as well as video over IP. The waveform, vector, picture, audio, and eye pattern displays enable simple yet comprehensive measurements and quality control of the widest range of audio and video formats. The status display allows you to assess errors and system stability with both event logs and long-term charts.
For audio, these instruments support digitally embedded audio in SDI or IP streams as well as discreet digital and analog audio connections. Multi channel audio levels, Lissajous, status, and loudness displays are available.
Finally, a fully customizable screen layout allows the LV7600 to easily solve complex measurement and monitoring tasks. Designed with the future in mind, the LV7600 addresses your current and evolving video and audio testing needs.
Features
- Supports various signal inputs
It supports SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI single link, 3G-SDI dual link and quad link, HD-SDI quad link, 10G/25G IP (video over IP). - Customizable layout
Various items such as video signal waveforms, vector waveforms, and pictures of input signals can be laid out in any position with your favorite size. - SDI signal generation function
SDI signal generation function can handle from HD-SDI to 12G-SDI. - JPEG XS
Analyze SMPTE ST 2110-22 (JPEG XS) streams, decode HD and 4K. - HDR
The HDR signal level monitoring and the level management at the assumed luminance (cd /m2 ) in a display considering OOTF are possible. - 3D-LUT function
By loading a 3D-LUT cube file, the 3D-LUT can be converted in real time to support various measurements and conversion outputs.(SER23 option is required.) - Supports full range of SDR
Supports waveform display, vectorscope, CIE chart, histogram, CineLite, CineZone, and full range of DPX and TIFF file capture. - False Color Display Support
False color display can be added to pictures, making it easy to determine highlights, human skin tones, 18% gray, blacks, etc.

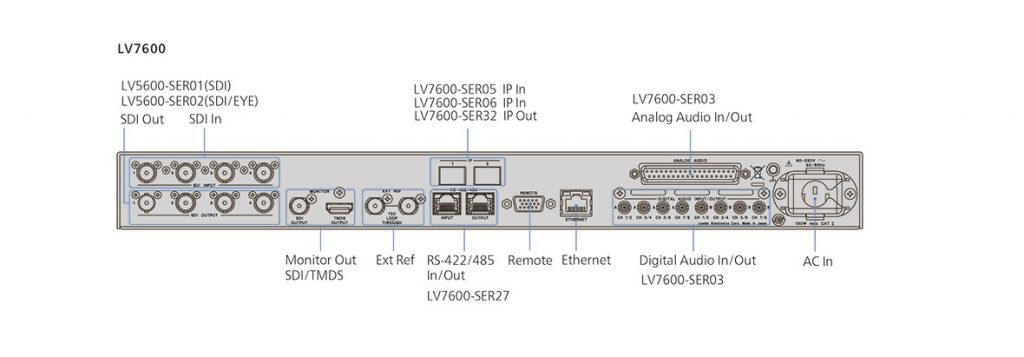

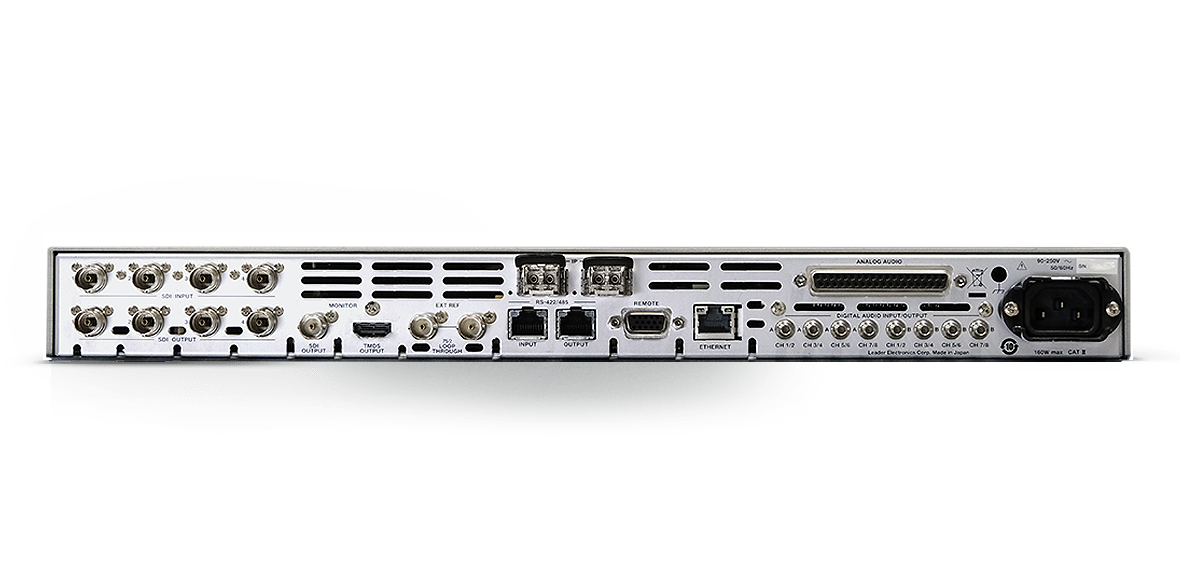

Rear Panel
- Hardware Options
Model Description Function LV5600-SER01 SDI INPUT SD, HD, 3G SDI input*1*3 LV5600-SER02A SDI INPUT/EYE SD, HD, 3G SDI input and EYE pattern display *1*4 LV7600-SER03 DIGI/ANA AUDIO Digital and analog audio I/O and displays LV7600-SER04 DOLBY Dolby Digital, Dolby E decoding function *2 LV7600-SER05 10G IP INPUT 10Gb/s IP input *1 LV7600-SER06 25G IP INPUT 25Gb/s IP input *1 *1 Each unit must be configured with at least one of SER01, SER02A, SER05, SER06.(The LV5600-SER01, and LV5600-SER02A cannot be installed in the instrument at the same time.The LV7600-SER05 and LV7600-SER06 cannot be installed in the instrument at the same time.)
*2 LV7600-SER03 is required for LV7600-SER04.
*3 LV5600-SER01 is an option common to LV5600 and LV7600.
*4 LV5600-SER02A is an option common to LV5600 and LV7600. - Software Options
Model Description Function LV7600-SER23 HDR HDR measurement function LV7600-SER24 TSG SDI Generator function *1 LV7600-SER25 FOCUS ASSIST Focus assist function LV7600-SER26 LAYOUT Customized layout function LV7600-SER27 TALLY Iris and Tally display LV7600-SER28 4K 4K video signal compatible function *2 LV7600-SER29 12G-SDI 12G-SDI and 6G‐SDI compatible *3 LV7600-SER30 NOISE METER Video Noise Meter LV7600-SER31 COLORIMETRY ZONE Colorimetry zone display LV7600-SER32 25G IP TSG 10G, 25Gb/s IP Pattern Generator *4 LV7600-SER33 JPEG XS Analyze SMPTE ST 2110-22 (JPEG XS) streams, decode HD and 4K. *5 LV7600-SER40 Extended Vector RGB VECTOR and YCbCr VECTOR *1 To support 4K, LV7600-SER28 is required.
*2 To support 12G-SDI and 6G-SDI, LV7600-SER28 + LV7600-SER29 are required.
*3 LV7600-SER28 is required for LV7600-SER29.
*4 LV7600-SER06 is required for LV7600-SER32.
*5 LV7600-SER06 is required for LV7600-SER33. - Related accessories
PRODUCT NAME MODEL REMARKS SFP+ MULTI‐MODE LC2148 For LV5600‐SER05,SER06/LV7600‐SER05,SER06/LT4610‐SER03
10GE、850nm、10GBASE‐SR/SWSFP+ SINGLE‐MODE LC2149 For LV5600‐SER05,SER06/LV7600‐SER05,SER06/LT4610‐SER03
10GE、1310nm、10GBASE‐LR/LWSFP28 MULTI‐MODE LC2151 For LV5600‐SER06/LV7600‐SER06
25GE、850nm、25GBASE‐SRSFP28 SINGLE‐MODE LC2152 For LV5600‐SER06/LV7600‐SER06
25GE、1310nm、25GBASE‐LRREMOTE CONTROLLER LV7290 Enables long distance operation through Ethernet - LV5600-SER01 | SD, HD, 3G SDI input
LV5600-SER02A | SD, HD, 3G SDI input and EYE pattern display- Video analysis function
Support Various types of video signals, in addition to a variety of displays such as video signal waveform displays, vector display, picture display, 5 BAR display, the CIE chromaticity diagram and CINELITE II, video signal quality (QoE) frozen frame error, black frame error gamut error detection, etc. are equipped as standard features . - Audio analysis function
The audio signal embedded in SDI signals can be displayed on a 8ch level meter.
16ch level meter,Lissajous, surround and status can be displayed by adding LV7600-SER03. - SDI signal data analysis function
The status display has an error detection function of CRC and embedded audio. It also has an event log, data dump, phase difference measurement functions, and can analyze SDI signals. - Screen capture function
A screen capture function to capture the display screen as still image data and a frame capture function to capture 16 frames of data are equipped.
A frame capture function to capture 16 frames of the SDI signals is equipped. There are two methods; one is to import them manually and another is to take them automatically when an error occurs.
* Only one frame is captured when an error occurs. - Frame capture viewer (free Windows software)
Search for data captured by the frame capture function, error search, and export to CSV are possible. - Time code display
The time code superimposed on SDI signals and can be displayed. The time code can also be used as the timestamp of the event log. - Input/output terminal
SDI input 4 BNC connectors
SDI output 4 BNC connectors (main unit standard equipment)
Re-clocked Output signal
The re-clocked output of input SDI signal is available on the respective SDI output terminal. - Closed caption display function
CEA-608, CEA-708 closed caption, Teletext, OP47 subtitle superimposed on SDI signal can be decoded and displayed. - CIE chart display function
This is a chromaticity diagram display function corresponding to colorimetry ITU-R BT. 601, ITU-R BT. 709, ITU-RBT. 2020.
The display mode corresponds to CIE 1931 (xy display) and CIE 1976 (u’v’ display). Since the CIE chart display function can display two color gamuts, the function can be used to suppress the color gamut of BT.709 using the equipment compatible with BT.2020, and to confirm the content that exceeds the color gamut of BT.709.
In color display, the chromaticity point is displayed using the color (on the picture) in the video signal.
The chromaticity point can be measured at the point with the cursor. - Eye pattern display( LV5600-SER02A)
The eye pattern waveform, jitter waveform of SDI signal, and the measurement result of each parameter can be displayed.
Only BNC input 1 supports eye pattern display.
- Video analysis function
- LV7600-SER03 | Digital and analog audio I/O and displays (16 ch)
- Audio analysis
Lissajous display, surround display, mute, clip error detection, loudness measurement, etc. are now available. Various analysis displays are also possible, and simultaneously display of 16 channels from one SDI signal or 4 channels from 4 SDI signals is possible. - Embedded Audio
Approved standard
12G、6G、3G、HD、HD(DL) *1 SMPTE ST 299 SD SMPTE ST 272 Sampling Frequency 48kHz / 24bit / L-PCM Quantization 24bit Format L-PCM / Dolby-E / Dolby Digital / Dolby Digital Plus *2 Clock Generation Generated from the video clock. Synchronization Must be synchronized to the video clock. All SDI signals must be synchronized Channel Separation Separates up to four groups (16 channels) from an SDI input.
(For 3G, channels 1 to 16 and channels 17 to 32 are divided.)*1 Support for 12G and 6G by adding LV7600-SER28 and SER29.
*2 Dolby function requires LV7600-SER04 option. - External input audio
Approved standard AES-3id Synchronization condition All external input audios are synchronized with each other. - Digital audio input/output Terminal
Input/output terminal DIN 1.0/2.3 connector Number of Inputs/outputs Group A 4 terminals 8ch
Group B 4 terminals 8chSwitching input/output Switching by each group terminals 8 ch
- Audio analysis
- LV7600-SER04 | Dolby Digital, Dolby E decoding function
Decoding display of Dolby E, Dolby Digital, Dolby Digital Plus becomes possible by adding
LV7600-SER 04 to LV7600-SER 03 option. - LV7600-SER05 | 10Gb/s IP input
LV7600-SER06 | 25Gb/s IP input- It corresponds to the IP signal and the video signal of the 2K video format at SMPTE ST 2022-6 (non-compression) and SMPTE 2110-20 (non-compression).
LV7600-SER06 is ready for 10G/25G IP inputs.
The IP transmission standards conform to SMPTE ST 2022-6/7 and SMPTE ST 2110-20/30/40, and SMPTE ST 2110 streams can also decode 4K(3840×2160) streams.
* To support 4K, LV7600-SER28 is required. - Video analysis function
Various types of video signals, in addition to a variety of displays such as video signal waveform displays, vector display, picture display, 5 BAR display, the CIE chromaticity diagram and CINELITEII, video signal quality (QoE) frozen frame error, black frame error, gamut error detection, etc. are equipped as standard features. - Audio analysis function
The audio signals superimposed on IP signals can be displayed on a level meter.
16ch level meter,Lissajous, surround and status can be displayed by adding LV5600-SER03. - Transmission quality analysis function
Together with monitoring transmission errors such as packet loss, check sum error, packet discontinuity, the transmission quality (QoS) monitoring function such as packet jitter, which was difficult to observe by using IP, are strengthened. - Capture function
A screen capture function to capture the display screen as still image data is equipped. It also has a frame capture function and can capture one frame of an active video period. - Time code display
The time code superimposed on IP signals and can be displayed.
The time code can also be used as the timestamp of the event log. - Redundancy System
The apparatus support the redundancy system of SMPTE ST 2022-7 and enable checks of the signal switching display seamlessly. - Packet Jitter Measurement
The apparatus measures the arrival intervals of IP stream packets and graphically display temporary fluctuations. - IP Packet Status Display
The apparatus displays information, including source addresses, destination addresses, and protocols for the IP packets. They display traffic of 10G/25G Ethernet graphically, as well. - PTP Packet Status Display
The apparatus graphically displays PTP time information and network delay information. - Conversion Output of SDI from IP
The apparatuses converts video signals that are input in the form of IP stream into SDI and output the converted signals. - Packet Capture
The apparatus captures the received IP packets and save them in the USB memory device in the form of PCAP files. - Packet Header Analysis
The apparatus displays the packet header information of selected streams. - Display of Delay for Each Port
The apparatus displays delays in the stream conforming to SMPTE ST 2022-7 for each input port. - Redundancy measurement
Display packet jitter and PTP measurement port 1 and 2 at the same time. - Logging by PTP timestamp
Logging error by PTP timestamp
Time Display by PTP time. - PTP information display.
Display PTP Grand Master from PTP announce message. - Add payload ID when IP convert to SDI
SDI output with Payload ID when IP convert to SDI.
* ST2110 only - CSV file copy of Graph data
Can be copied graph data of packet jitter and PTP and other by CSV file. - Audio ANC packet jitter display
Support packet jitter graph display for Audio and ANC.
* ST2110 only - Buffer measurement
Measure CMAX and VRX value of standardized SMPTE 2110-21
*LV7600-SER06/ST2110 only - Support IP format
Standard SMPTE ST 2022-6,SMPTE ST 2110-20 Redundancy standard SMPTE ST 2022-7 Synchronized standard PTP (SMPTE ST 2059-1/2) Support protocol IPv4 (Internet Protocol version 4) IGMPv2/v3 (Internet Group Management Protocol) NMOS (IS-04/05) via Ethernet - Input video format
LV7600-SER05 Standard 10G SMPTE ST 2022-6,SMPTE ST 2110-20 Video format Non compression 1080(60,59.94,50 I/P)、720(60,59.94,50 I/P)、576(50I)、487(59.94I)、(YCbCr4:2:2/10bit) LV7600-SER06 Standard 10G/25G SMPTE ST 2022-6,SMPTE ST 2110-20 Video format Non compression 1080(60,59.94,50 I/P)、720(60,59.94,50 I/P)、576(50I)、487(59.94I)、(YCbCr4:2:2/10bit)、4K Non compression YCbCr 4:2:2 10bit 3840×2160 60/59.94/50 /P - Input Audio format
Standard SMPTE ST 2022-6,SMPTE ST 2110-30 Sampling frequency 48kHz Format L-PCM / Dolby-E / Dolby Digital / Dolby Digital Plus Produce clock method From Video clock. Synchronization condition Synchronized with video IP audio 16ch maximum display *L-PCM requires LV7600-SER03 option.
*Dolby function requires LV7600-SER03 and LV7600-SER04 options. - Ancillary data
Support standard SMPTE ST 2110-40 - LV7600-SER05
Input connector
Input connector SFP+ Port number 2 Support standard 10G BASE-SR / 10G BASE-LR - LV7600-SER06
Input connector
Input port SFP+ SFP SFP+ / SFP28 Port number 2(*) Support standard 10G BASE-SR / 10G BASE-LR 25G BASE-SR / 25G BASE-LR * Signal standard of Port 1 and Port 2 should be same standard.
- Ancillary data
Support standard SMPTE ST 2110-40
- It corresponds to the IP signal and the video signal of the 2K video format at SMPTE ST 2022-6 (non-compression) and SMPTE 2110-20 (non-compression).
- LV7600-SER23 | HDR measurement function
In addition to HLG and PQ provided by ITU-R BT.2100, the level monitoring of the HDR signal corresponding to S-log3 and the level management at the assumed luminance (Nits) in a display considering OOTF are possible.
The video signal waveform displays HDR scale along with the IRE scale. In the cine zone display, the luminance distribution of the HDR area can be easily confirmed by displaying the SDR area in monochrome, and the HDR with a color according to the brightness.- HDR zone display.
The luminance distribution of the HDR area can be easily confirmed by coloring the SDR area with monochrome, and the HDR with a color according to the brightness. - HDR Scale
By associating WFM and histogram with HDR scale, management of the video with brightness at the time of scene linearity is possible. - HDR waveform display
- HDR point measurement
- The crosshairs can be freely moved.
- Up to 3 points can be measured simultaneously
- Approved standard
ITU-R BT. 2100 (HLG, PQ), S-Log3, C-Log, Log-C
It corresponds to all except SD input of SDI.
- HDR zone display.
- LV7600-SER24 | SDI Generator function
SDI signal generation function can handle from HD-SDI to 12G-SDI.
Simplified UHDTV multi-format color bar and pattern correspond to the multiple overlays of moving boxes and embedded audio, flat field pattern can be specified at any level, 4K multiformat color bar can be selected.
With the 4K pattern of 3G-SDI quad link, the phase of each link can be shifted and output, so confirmation of the pull-in margin of the receiving device is possible.
When outputting 3G (DL) – 4K signal and 3G (QL) – 4K signal, LV7600-SER 28 is required for LV7600.- Output pattern
100% color bar, 75% color bar, HD multi format color bar, ARIB 4K multi format color bar (simple format), color raster, cross hatch, 10 steps, limit lamp, Check field, lip sync pattern. - Scroll
Direction 8 directions (up and down, left and right, and combinations thereof) Speed range Unit 4 to 124 dots per frame (field), 4 dot unit. Moving Box ON/OFFF Color WHITE, YELLOW, CYAN, GREEN, MAGENTA, RED, BLUE, BLACK
Speed 1 to 3 - Embedded audio
Number of superimposed channels maximum 16 ch ON/OFF of superimposition ON/OFF in audio group unit Audio level -20dBFS、-18dBFS、0dBFS、Mute *For horizontal 4096/2048 pixel format at frame rates 60, 59.94, 30, and 29.97 Hz, only 8 channels are multiplexed.
- Output pattern
- LV7600-SER25 | Focus assist function
This is a focus detection function realizing a new algorithm based on nonlinear super resolution technology. The focus details can be detected with high sensitivity even with low-contrast images, which were conventionally difficult to detect. In addition, sensitivity can be selected from 5 levels according to the video scene. - LV7600-SER26 | Customized layout function
- Customizable layout function
Various items such as video signal waveforms display, vector display waveforms, and images of input signals can be laid out in any position with your user’s preferred size. Multiple input signals up to 4 inputs can be displayed simultaneously, or one input signal can be displayed on multiple screens. - Display channel Function
1 SDI input signals of 1 to 4 input terminals can be allocated to A to D display channels.
At this time, by allocating one SDI input signal to multiple display channels, monitoring video signals in multiple display formats is possible.
For example, displaying the signal input to SDI input 1 as component video waveform can be displayed on display channel A and the composite video waveform can be displayed on display channel B.
* It is not possible to monitor errors in the background of input channels not assigned to display channels.
- Customizable layout function
- LV7600-SER27 | Iris and Tally display
Serial communication RS-422/485 terminals enable to display camera ID, and tally. Fast switching of tally display by remote terminal is also possible. - LV7600-SER28 | 4K video signal compatible function
It supports 4K video format signals of 3G-SDI dual link and quad link, HD- SDI quad link.In the case of 3G-SDI dual link input, up to two inputs can be displayed through switching. - LV7600-SER29 | 12G-SDI compatible
It is compatible with 12G-SDI and 6G-SDI single link. Also, up to four inputs can be displayed through switching. - LV7600-SER30 | Video Noise Meter
The LV7600-SER30 is license options for the LV7600 to add the function to measure the brightness signals of input SDI signals or video noise contained in the RGB signals.- Support various formats.
Measurement is possible with various SDI formats ranging from 4K to SD. - Noise Measurement Frequency Band
A low-pass filter to select frequency bands is mounted, thereby enabling the removal of high-frequency range components during noise measurements. - Full Digital Processing
Measurements of noise without conversion of analog to digital data obtained from input SDI signals enables high precision, stable measurements. - Measurement Window
The Noise Measurement Window can be set in the picture display window. The size and the area of the window can be set in units of pixels or lines. If the video level is not flat as affected by the lens, the area as flat as possible of the measurement window can be selected for the measurement. - Alarm Function
An alarm can be displayed when the noise level exceeds the predetermined threshold value.
- Support various formats.
- LV7600-SER31 | Colorimetry zone display
This feature simplifies the task of identifying the reproduction errors which can occur when transmitting video content produced in BT.709, DCI-P3 or BT.2020 wide color gamut or when converting content from BT.2020 to narrow color gamut. - LV7600-SER32 | 10G, 25Gb/s IP Pattern Generator
HD and 4K (3840×2160) video signal test patterns can be generated as an IP transmission stream that conforms to SMPTE ST 2110-20/30/40 for LV7600-SER06.- IP Format Ready
Test pattern signal streams conforming to IP format (SMPTE ST 2110-20/30/40) can be generated - Network Synchronization
Video and audio test signals can be generated in synchronization with SMPTE ST2059 PTP (Precision Time Protocol). - Packet Error
Packet errors can be added to the test signals.
(Only ST2110)
When packet errors or packet jitter is added to the test signal output of a unit, you cannot decode video, audio and ANC streams in the same unit.
(Only PORT 1 is supported) - Packet Jitter
Packet jitter can be added to the test signals.
(Only ST2110)
When packet errors or packet jitter is added to the test signal output of a unit, you cannot decode video, audio and ANC streams in the same unit.
(Only PORT1 is supported) - Lip-sync Pattern output
Lip-sync pattern can be selected and output as a test pattern.
* To support 4K, LV7600-SER28 is required.
- IP Format Ready
- LV7600-SER33 | JPEG XS
This license option enables the LV5600 and LV7600 to analyze SMPTE ST 2110-22 (JPEG XS) streams, decode HD and 4K. It can simultaneously measure three type of signals in HD mode, SMPTE ST 2110-22 (JPEG XS), SMPTE ST2110-20 (Uncompressed) and HD-SDI, allowing each signal to be displayed and compared simultaneously. Analyze and display the headers of JPEG XS packets to check JPEG XS format information and compression level information. Test pattern signals for compressed HD and 4K video in SMPTE ST 2110-22 (JPEG XS) can be transmitted. This test signals can also be configured with compression parameters, etc. The receiver and transmitter functions of the JPEG XS are NMOS-compatible.- JPEG XS decoding and test pattern output support
It is possible to check the picture and waveform of compressed video signals in SMPTE ST 2110-22 (JPEG XS). In combination with the SER32 (IP TSG) option, test pattern output of JPEG XS encoded video signals is also possible. - JPEG XS packet header analysis
Receives the streams specified in SMPTE ST 2110-22 (JPEG XS), analyses the packet headers and displays them. By analyzing the packet’s header information, the video format information, etc. can be checked. - JPEG XS packet error detection
Detects errors in the sequence of JPEG XS packets. - JPEG XS format comparison
JPEG-XS, SDP and ST2110-40 (payload ID) comparative display.
- JPEG XS decoding and test pattern output support
- LV7600-SER40 | Extended Vector
- LV7290 | Remote Controller
The remote controller LV7290 is used to remotely control waveform monitor or rasterizer (LV5900 / LV5600 / LV5350 / LV5300(A) / LV7600 / LV7300 / LV7390)via Ethernet.
Used by connecting to the ETHERNET terminal on the rear of the product.
One remote contoroller can be connected up to 8 units of waveform monitor or rasterrizer in every combination.
Dimensions and weight: 482 (W) X 44 (H) X 110 (D) mm (excluding protrusions), 1.2 kg
