WAVEFORM MONITOR LV5600

• Video analysis function
  Support Various types of video signals, in addition to a variety of displays such as video signal waveform displays, vector display, picture display, 5 BAR display, the CIE chromaticity diagram and CINELITE II, video signal quality (QoE) frozen frame error, black frame error gamut error detection, etc. are equipped as standard features .
• Audio analysis function
  The audio signal embedded in SDI signals can be displayed on a 8ch level meter.
  16ch level meter,Lissajous, surround and status can be displayed by adding LV5600-SER03.In addition,decoding display of Dolby E, Dolby Digital, Dolby Digital Plus becomes possible by adding LV5600-SER04.
• SDI signal data analysis function
  The status display has an error detection function of CRC and embedded audio. It also has an event log, data dump, phase difference measurement functions, and can analyze SDI signals.
• Screen capture function
  A screen capture function to capture the display screen as still image data and a frame capture function to capture 16 frames of data are equipped.
  A frame capture function to capture 16 frames of the SDI signals is equipped. There are two methods; one is to import them manually and another is to take them automatically when an error occurs.
  * Only one frame is captured when an error occurs.
• Frame capture viewer (free Windows software)
  Search for data captured by the frame capture function, error search, and export to CSV are possible.
• Time code display
  The time code superimposed on SDI signals and can be displayed. The time code can also be used as the timestamp of the event log.

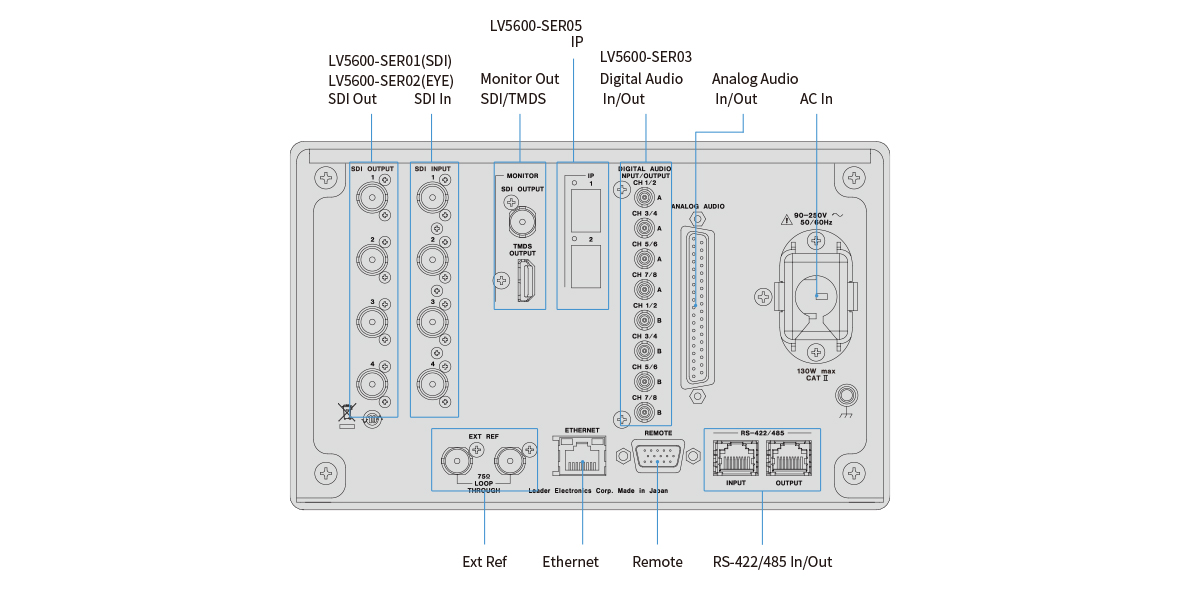

• Input/output terminal
  SDI input 4 BNC connectors
  SDI output 4 BNC connectors (main unit standard equipment)
  Re-clocked Output signal
  The re-clocked output of input SDI signal is available on the respective SDI output terminal.
• Closed caption display function
  CEA-608, CEA-708 closed caption, Teletext, OP47 subtitle superimposed on SDI signal can be decoded and displayed.
• Simple Japanese Closed Caption Display
  Displays a simple Japanese closed caption on the picture display. (Select HD, SD, analog, or portable closed caption to display. Select language 1 or 2.)
• CIE chart display function
  This is a chromaticity diagram display function corresponding to colorimetry ITU-R BT. 601, ITU-R BT. 709, ITU-RBT. 2020.
  The display mode corresponds to CIE 1931 (xy display) and CIE 1976 (u’v’ display). Since the CIE chart display function can display two color gamuts, the function can be used to suppress the color gamut of BT.709 using the equipment compatible with BT.2020, and to confirm the content that exceeds the color gamut of BT.709.
  In color display, the chromaticity point is displayed using the color (on the picture) in the video signal.
  The chromaticity point can be measured at the point with the cursor.
• Eye pattern display（LV5600-SER02A)
  The eye pattern waveform, jitter waveform of SDI signal, and the measurement result of each parameter can be displayed.
  Only BNC input 1 supports eye pattern display.





• Audio analysis
  Lissajous display, surround display, mute, clip error detection, loudness measurement, etc. are now available. Various analysis displays are also possible, and simultaneously display of 16 channels from one SDI signal or 4 channels from 4 SDI signals is possible.
• Lip sync measurement
  Measures the time difference between the SDI signal and digital audio signal with a Leader TSG that supports lip syncing. Displays the results numerically and graphically.
  * TSG patterns not made by Leader may be supportable by specifying the video signal setting and audio signal setting.
• Embedded Audio
  Approved standard


  12G、6G、3G、HD、HD(DL)　*1	SMPTE ST 299
  SD	SMPTE ST 272
  Sampling Frequency	48kHz / 24bit / L-PCM
  Quantization	24bit
  Format	L-PCM / Dolby-E / Dolby Digital / Dolby Digital Plus *2
  Clock Generation	Generated from the video clock.
  Synchronization	Must be synchronized to the video clock.
  	All SDI signals must be synchronized
  Channel Separation	Separates up to four groups (16 channels) from an SDI input. (For 3G, channels 1 to 16 and channels 17 to 32 are divided.)

  *1 Support for 12G and 6G by adding LV5600-SER28 and SER29.

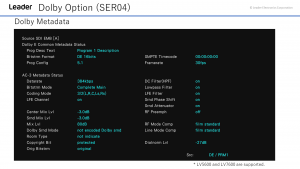

  *2 Support for Dolby by adding LV5600-SER04.

• External input audio


  Approved standard	AES-3id
  Synchronization condition	All external input audios are synchronized with each other.

• Digital audio input/output Terminal


  Input/output terminal	DIN 1.0/2.3 connector
  Number of Inputs/outputs	Group A 4 terminals 8ch Group B 4 terminals 8ch
  Switching input/output	Switching by each group terminals 8 ch

• It corresponds to the IP signal and the video signal of the 2K video format at SMPTE ST 2022-6 (non-compression) and SMPTE 2110-20 (non-compression).
  LV5600-SER06 is ready for 10G/25G IP inputs.
  The IP transmission standards conform to SMPTE ST 2022-6/7 and SMPTE ST 2110-20/30/40, and SMPTE ST 2110 streams can also decode 4K(3840×2160) streams.
  * To support 4K, LV5600-SER28 is required.
• Video analysis function
  Various types of video signals, in addition to a variety of displays such as video signal waveform displays, vector display, picture display, 5 BAR display, the CIE chromaticity diagram and CINELITEII, video signal quality (QoE) frozen frame error, black frame error, gamut error detection, etc. are equipped as standard features.
• Audio analysis function
  The audio signals superimposed on IP signals can be displayed on a 8ch level meter.
  16ch level meter,Lissajous, surround and status can be displayed by adding LV5600-SER03.In addition,decoding display of Dolby E, Dolby Digital, Dolby Digital Plus becomes possible by adding LV5600-SER04.
• Transmission quality analysis function
  Together with monitoring transmission errors such as packet loss, check sum error, packet discontinuity, the transmission quality (QoS) monitoring function such as packet jitter, which was difficult to observe by using IP, are strengthened.
• Capture function
  A screen capture function to capture the display screen as still image data is equipped. It also has a frame capture function and can capture one frame of an active video period.
• Time code display
  The time code superimposed on IP signals and can be displayed.
  The time code can also be used as the timestamp of the event log.
• Redundancy System
  The apparatus support the redundancy system of SMPTE ST 2022-7 and enable checks of the signal switching display seamlessly.
• Packet Jitter Measurement
  The apparatus measures the arrival intervals of IP stream packets and graphically display temporary fluctuations.
• IP Packet Status Display
  The apparatus displays information, including source addresses, destination addresses, and protocols for the IP packets. They display traffic of 10G/25G Ethernet graphically, as well.
• PTP Packet Status Display
  The apparatus graphically displays PTP time information and network delay information.
• Conversion Output of SDI from IP
  The apparatuses converts video signals that are input in the form of IP stream into SDI and output the converted signals.
• Packet Capture
  The apparatus captures the received IP packets and save them in the USB memory device in the form of PCAP files.
• Packet Header Analysis
  The apparatus displays the packet header information of selected streams.

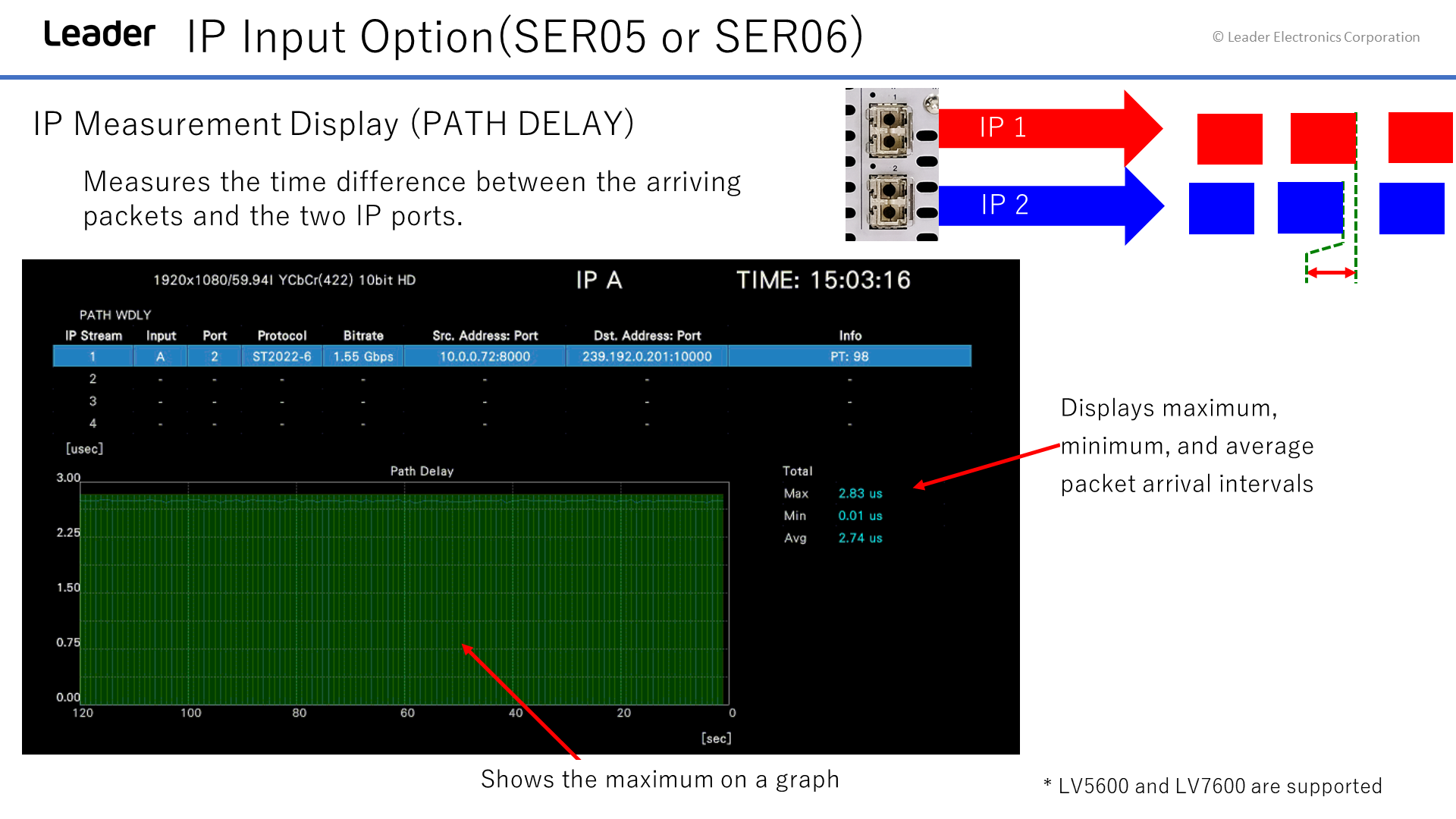

• Display of Delay for Each Port
  The apparatus displays delays in the stream conforming to SMPTE ST 2022-7 for each input port.
• Redundancy measurement
  Display packet jitter and PTP measurement port 1 and 2 at the same time.
• Logging by PTP timestamp
  Logging error by PTP timestamp
  Time Display by PTP time.
• PTP information display.
  Display PTP Grand Master from PTP announce message.
• Add payload ID when IP convert to SDI
  SDI output with Payload ID when IP convert to SDI.
  * ST2110 only
• CSV file copy of Graph data
  Can be copied graph data of packet jitter and PTP and other by CSV file.
• Audio ANC packet jitter display
  Support packet jitter graph display for Audio and ANC.
  * ST2110 only
• Buffer measurement
  Measure CMAX and VRX value of standardized SMPTE 2110-21
  * LV5600-SER06/ST2110 only
• Support IP format


  Standard	SMPTE ST 2022-6，SMPTE ST 2110-20
  Redundancy standard	SMPTE ST 2022-7
  Synchronized standard	PTP (SMPTE ST 2059-1/2)
  Support protocol	IPv4 (Internet Protocol version 4)
  	IGMPv2/v3 (Internet Group Management Protocol)
  	NMOS (IS-04/05) via Ethernet

• Input video format


  LV5600-SER05
  Standard	10G SMPTE ST 2022-6，SMPTE ST 2110-20
  Video format	Non compression　 SD *1　 720×487（59.94I）、720×576（50I） HD　 1920×1080（60,59.94,50I）、1280×720（60,59.94,50P） 3G-A　 1920×1080（60,59.94,50P）
  Color System	YCbCr4:2:2/10bi
  LV5600-SER06
  Standard	10G/25G SMPTE ST 2022-6，SMPTE ST 2110-20
  Video format	Non compression　 SD *1　 720×487（59.94I）、720×576（50I） HD　 1920×1080（60,59.94,50I）、1280×720（60,59.94,50P） 3G-A　 1920×1080（60,59.94,50P） 4K *2　 3840×2160（60/59.94/50 /P）
  Color System	YCbCr4:2:2/10bit

  *1 Only SMPTE ST 2022 is supported.
  *2 Only SMPTE ST 2022 is supported.SER28 must be installed to input 4K signals.

• Input Audio format


  Standard	SMPTE ST 2022-6,SMPTE ST 2110-30,SMPTE ST 2110-31
  Sampling frequency	48kHz
  Format	L-PCM
  Quantization	10bit
  Produce clock method	From Video clock.
  Synchronization condition	Synchronized with video
  IP audio 16ch maximum display

• Ancillary data


  Support standard

  SMPTE ST 2110-40

• LV5600-SER05
  Input connector


  Connector Type	SFP+
  Port number	2
  Support standard	10G BASE-SR / 10G BASE-LR

• LV5600-SER06
  Input connector


  Connector Type	QSFP+, QSFP28
  SFP	SFP+ / SFP28 *1
  Port number	2 *2
  Support standard	10G BASE-SR / 10G BASE-LR
  	25G BASE-SR / 25G BASE-LR

  *1 The conversion adapter included with the SER06 is used when installing the SFP+ or SFP28.
  *2 Signal standard of Port 1 and Port 2 should be same standard.

• Ancillary data


  Support standard

  SMPTE ST 2110-40

• HDR zone display.
  The luminance distribution of the HDR area can be easily confirmed by coloring the SDR area with monochrome, and the HDR with a color according to the brightness.
• HDR Scale
  By associating WFM and histogram with HDR scale, management of the video with brightness at the time of scene linearity is possible.
• HDR waveform display
• HDR point measurement
  • The crosshairs can be freely moved.
  • Up to 3 points can be measured simultaneously
• Approved standard
  ITU-R BT. 2100 (HLG, PQ), S-Log 3, C-Log, Log-C
  It corresponds to all except SD input of SDI.

• Output pattern
  100% color bar, 75% color bar, HD multiformat color bar *1, 4K multiformat color bar *1, color raster, gamma, cross hatch, 10 step, limit lamp, check field, lip sync pattern(LV5600-SER03 is required), HDR color bar (LV5600-SER23 is required) *1
• Scrolling *2　
  ・Direction : Eight directions (up, down, left, right, and their combinations)
  ・Speed : Range and Unit Per frame (field) 4 to 124 dots, in 4 dot steps
• Moving Box *2 : ON / OFF
  ・Colors : WHITE / YELLOW / CYAN / GREEN / MAGENTA / RED / BLUE / BLACK
  ・Speed : 1 to 3
• Embedded Audio
  ・Number of Embedded : Channels 16 channels max. *3
  ・Embedding On/Off : On/off at the audio group level
  ・Audio Level : -20d BFS, -18 dBFS, 0 dBFS, Mute
  ・Audio frequency : 1kHz
  ・CRC error addition function : Insert incorrect CRC value in Y series of the first line.

*1 It cannot be set in horizontal 4096 and 2048 pixel format.
*2 Either scrolling, or moving box can be turned on.
*3 For horizontal 4096/2048 pixel format at frame rates 60, 59.94, 30, 29.97 Hz,only 8 channels are embedded.

• Customizable layout function
  Various items such as video signal waveforms display, vector display waveforms, and images of input signals can be laid out in any position with your user’s preferred size. Multiple input signals up to 4 inputs can be displayed simultaneously, or one input signal can be displayed on multiple screens.

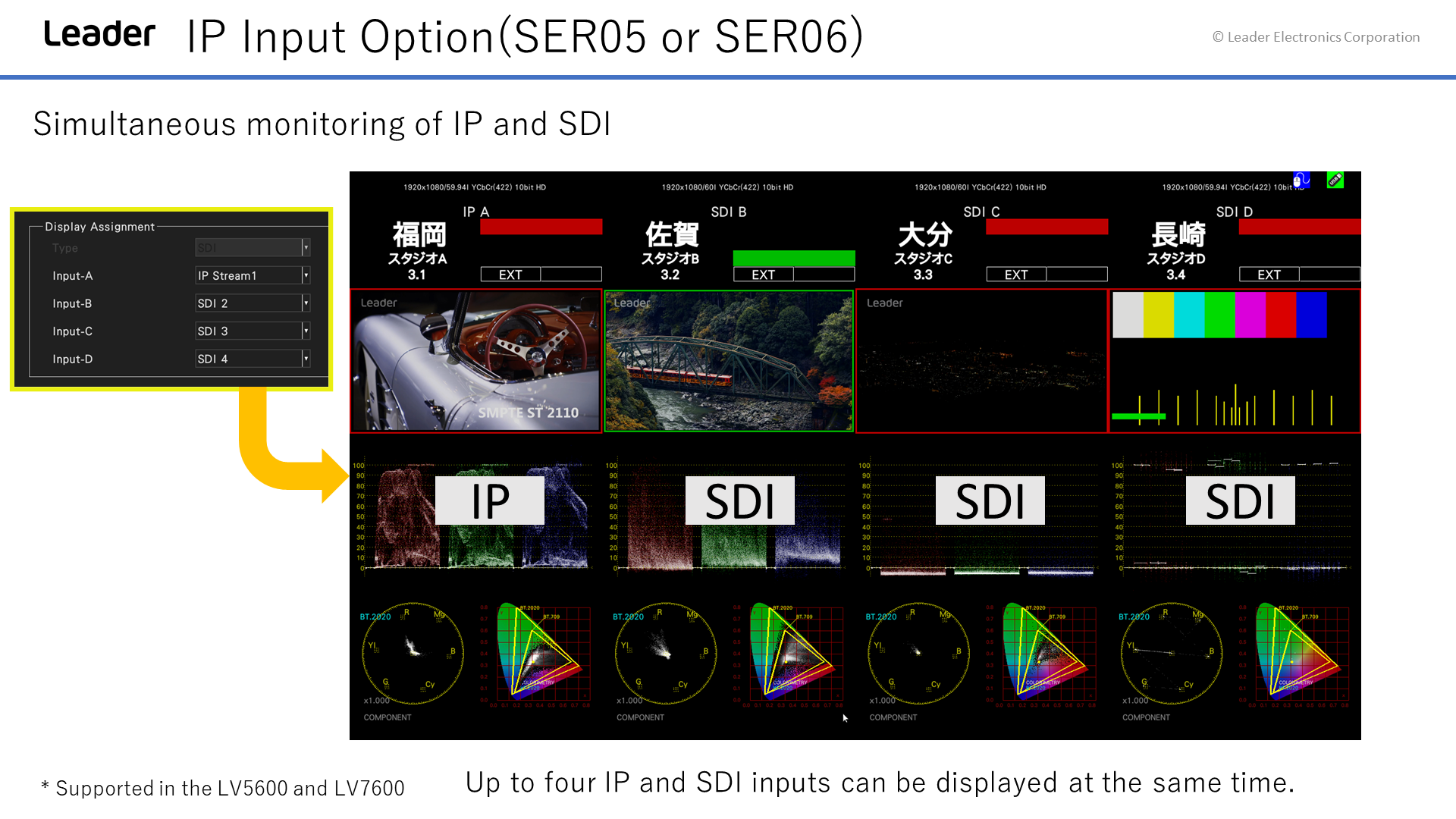

• Display assignment Function
  1 SDI input signals of 1 to 4 input terminals can be allocated to A to D display channels.
  At this time, by allocating one SDI input signal to multiple display channels, monitoring video signals in multiple display formats is possible.
  For example, displaying the signal input to SDI input 1 as component video waveform can be displayed on display channel A and the composite video waveform can be displayed on display channel B.











• Support various formats.
  Measurement is possible with various SDI formats ranging from 4K to SD.
• Noise Measurement Frequency Band
  A low-pass filter to select frequency bands is mounted, thereby enabling the removal of high-frequency range components during noise measurements.
• Full Digital Processing
  Measurements of noise without conversion of analog to digital data obtained from input SDI signals enables high precision, stable measurements.
• Measurement Window
  The Noise Measurement Window can be set in the picture display window. The size and the area of the window can be set in units of pixels or lines. If the video level is not flat as affected by the lens, the area as flat as possible of the measurement window can be selected for the measurement.
• Alarm Function
  An alarm can be displayed when the noise level exceeds the predetermined threshold value.



• IP Format Ready
  Test pattern signal streams conforming to IP format (SMPTE ST 2110-20/30/40) can be generated.
• Network Synchronization
  Video and audio test signals can be generated in synchronization with SMPTE ST2059 PTP (Precision Time Protocol).
• Packet Error
  Packet errors can be added to the test signals.
  (Only ST2110)
  When packet errors or packet jitter is added to the test signal output of a unit, you cannot decode video, audio and ANC streams in the same unit.
  (Only PORT 1 is supported)
• Packet Jitter
  Packet jitter can be added to the test signals.
  (Only ST2110)
  When packet errors or packet jitter is added to the test signal output of a unit, you cannot decode video, audio and ANC streams in the same unit.
  (Only PORT1 is supported)
• Lip-sync Pattern output
  Lip-sync pattern can be selected and output as a test pattern.

* To support 4K, LV5600-SER28 is required.

• JPEG XS decoding and test pattern output support
  It is possible to check the picture and waveform of compressed video signals in SMPTE ST 2110-22 (JPEG XS). In combination with the SER32 (IP TSG) option, test pattern output of JPEG XS encoded video signals is also possible.
• JPEG XS packet header analysis
  Receives the streams specified in SMPTE ST 2110-22 (JPEG XS), analyses the packet headers and displays them. By analyzing the packet’s header information, the video format information, etc. can be checked.
• JPEG XS packet error detection
  Detects errors in the sequence of JPEG XS packets.
• JPEG XS format comparison
  JPEG-XS, SDP and ST2110-40 (payload ID) comparative display.
